[Kaggle] Spam mail

Author

SEOYEON CHOI

Published

November 24, 2025

Data

data

  • SPAM E-mail Database
    • The “spam” concept is diverse: advertisements for products/websites, make money fast schemes, chain letters, pornography… Our collection of spam e-mails came from our postmaster and individuals who had filed spam. Our collection of non-spam e-mails came from filed work and personal e-mails, and hence the word ‘george’ and the area code ‘650’ are indicators of non-spam. These are useful when constructing a personalized spam filter. One would either have to blind such non-spam indicators or get a very wide collection of non-spam to generate a general purpose spam filter.
  • Attribute Information:
    • The last column denotes wåhether the e-mail was considered spam (1) or not (0), i.e. unsolicited commercial e-mail. Most of the attributes indicate whether a particular word or character was frequently occurring in the e-mail. The run-length attributes (55-57) measure the length of sequences of consecutive capital letters.
    • For the statistical measures of each attribute, see the end of this file. Here are the definitions of the attributes:
    • 48 continuous real [0,100] attributes of type word_freq_WORD = percentage of words in the e-mail that match WORD, i.e. 100 * (number of times the WORD appears in the e-mail) / total number of words in e-mail. A “word” in this case is any string of alphanumeric characters bounded by non-alphanumeric characters or end-of-string.
    • 6 continuous real [0,100] attributes of type char_freq_CHAR = percentage of characters in the e-mail that match CHAR, i.e. 100 * (number of CHAR occurrences) / total characters in e-mail
    • 1 continuous real [1,…] attribute of type capital_run_length_average = average length of uninterrupted sequences of capital letters
    • 1 continuous integer [1,…] attribute of type capital_run_length_longest = length of longest uninterrupted sequence of capital letters
    • 1 continuous integer [1,…] attribute of type capital_run_length_total = sum of length of uninterrupted sequences of capital letters = total number of capital letters in the e-mail
    • 1 nominal {0,1} class attribute of type spam = denotes whether the e-mail was considered spam (1) or not (0), i.e. unsolicited commercial e-mail.

Import

import pandas as pd

import matplotlib.pyplot as plt
import plotly.express as px
import seaborn as sns

from sklearn.preprocessing import StandardScaler
from sklearn.decomposition import PCA

from sklearn.model_selection import train_test_split
from sklearn.preprocessing import StandardScaler
from sklearn.linear_model import LogisticRegression
from sklearn.metrics import classification_report, confusion_matrix, roc_auc_score, ConfusionMatrixDisplay, RocCurveDisplay
df = pd.read_csv('../../../delete/spambase_csv.csv')
df.info()
<class 'pandas.core.frame.DataFrame'>
RangeIndex: 4601 entries, 0 to 4600
Data columns (total 58 columns):
 #   Column                      Non-Null Count  Dtype
---  ------                      --------------  -----
 0   word_freq_make              4601 non-null   float64
 1   word_freq_address           4601 non-null   float64
 2   word_freq_all               4601 non-null   float64
 3   word_freq_3d                4601 non-null   float64
 4   word_freq_our               4601 non-null   float64
 5   word_freq_over              4601 non-null   float64
 6   word_freq_remove            4601 non-null   float64
 7   word_freq_internet          4601 non-null   float64
 8   word_freq_order             4601 non-null   float64
 9   word_freq_mail              4601 non-null   float64
 10  word_freq_receive           4601 non-null   float64
 11  word_freq_will              4601 non-null   float64
 12  word_freq_people            4601 non-null   float64
 13  word_freq_report            4601 non-null   float64
 14  word_freq_addresses         4601 non-null   float64
 15  word_freq_free              4601 non-null   float64
 16  word_freq_business          4601 non-null   float64
 17  word_freq_email             4601 non-null   float64
 18  word_freq_you               4601 non-null   float64
 19  word_freq_credit            4601 non-null   float64
 20  word_freq_your              4601 non-null   float64
 21  word_freq_font              4601 non-null   float64
 22  word_freq_000               4601 non-null   float64
 23  word_freq_money             4601 non-null   float64
 24  word_freq_hp                4601 non-null   float64
 25  word_freq_hpl               4601 non-null   float64
 26  word_freq_george            4601 non-null   float64
 27  word_freq_650               4601 non-null   float64
 28  word_freq_lab               4601 non-null   float64
 29  word_freq_labs              4601 non-null   float64
 30  word_freq_telnet            4601 non-null   float64
 31  word_freq_857               4601 non-null   float64
 32  word_freq_data              4601 non-null   float64
 33  word_freq_415               4601 non-null   float64
 34  word_freq_85                4601 non-null   float64
 35  word_freq_technology        4601 non-null   float64
 36  word_freq_1999              4601 non-null   float64
 37  word_freq_parts             4601 non-null   float64
 38  word_freq_pm                4601 non-null   float64
 39  word_freq_direct            4601 non-null   float64
 40  word_freq_cs                4601 non-null   float64
 41  word_freq_meeting           4601 non-null   float64
 42  word_freq_original          4601 non-null   float64
 43  word_freq_project           4601 non-null   float64
 44  word_freq_re                4601 non-null   float64
 45  word_freq_edu               4601 non-null   float64
 46  word_freq_table             4601 non-null   float64
 47  word_freq_conference        4601 non-null   float64
 48  char_freq_%3B               4601 non-null   float64
 49  char_freq_%28               4601 non-null   float64
 50  char_freq_%5B               4601 non-null   float64
 51  char_freq_%21               4601 non-null   float64
 52  char_freq_%24               4601 non-null   float64
 53  char_freq_%23               4601 non-null   float64
 54  capital_run_length_average  4601 non-null   float64
 55  capital_run_length_longest  4601 non-null   int64
 56  capital_run_length_total    4601 non-null   int64
 57  class                       4601 non-null   int64
dtypes: float64(55), int64(3)
memory usage: 2.0 MB
df.head()
word_freq_make word_freq_address word_freq_all word_freq_3d word_freq_our word_freq_over word_freq_remove word_freq_internet word_freq_order word_freq_mail ... char_freq_%3B char_freq_%28 char_freq_%5B char_freq_%21 char_freq_%24 char_freq_%23 capital_run_length_average capital_run_length_longest capital_run_length_total class
0 0.00 0.64 0.64 0.0 0.32 0.00 0.00 0.00 0.00 0.00 ... 0.00 0.000 0.0 0.778 0.000 0.000 3.756 61 278 1
1 0.21 0.28 0.50 0.0 0.14 0.28 0.21 0.07 0.00 0.94 ... 0.00 0.132 0.0 0.372 0.180 0.048 5.114 101 1028 1
2 0.06 0.00 0.71 0.0 1.23 0.19 0.19 0.12 0.64 0.25 ... 0.01 0.143 0.0 0.276 0.184 0.010 9.821 485 2259 1
3 0.00 0.00 0.00 0.0 0.63 0.00 0.31 0.63 0.31 0.63 ... 0.00 0.137 0.0 0.137 0.000 0.000 3.537 40 191 1
4 0.00 0.00 0.00 0.0 0.63 0.00 0.31 0.63 0.31 0.63 ... 0.00 0.135 0.0 0.135 0.000 0.000 3.537 40 191 1

5 rows × 58 columns

EDA

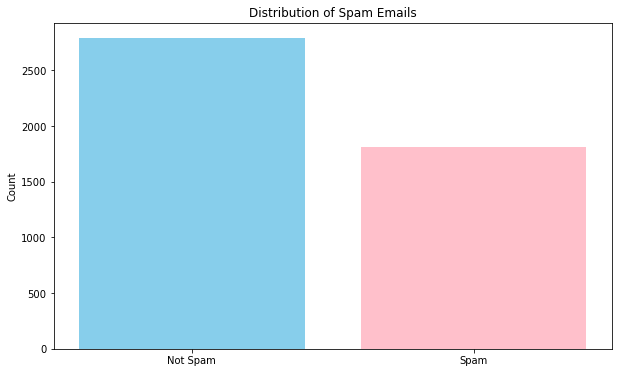

  • spam vs not spam
plt.figure(figsize=(10,6))
plt.bar(df['class'].value_counts().sort_index().index,df['class'].value_counts().sort_index().values, color=['skyblue','pink'])
plt.xticks([0,1],['Not Spam','Spam'],fontsize=10)
plt.ylabel('Count')
plt.title('Distribution of Spam Emails')
Text(0.5, 1.0, 'Distribution of Spam Emails')

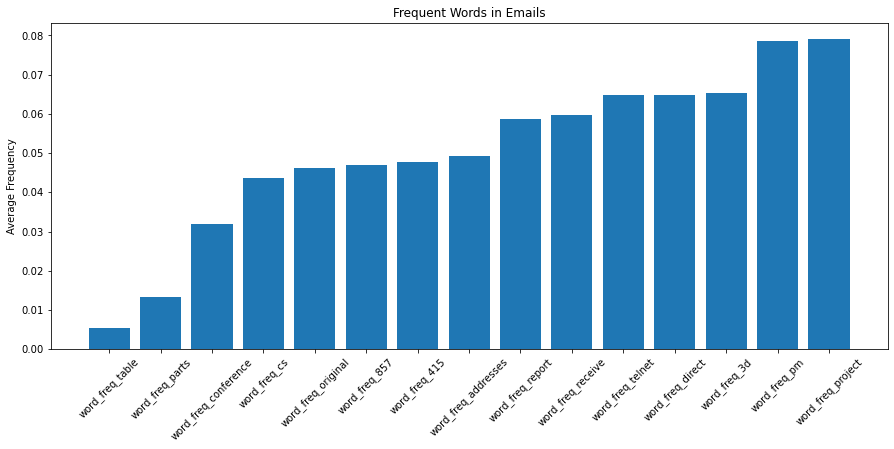

  • Top 15
plt.figure(figsize=(15,6))
plt.bar(df[[col for col in df.columns if col.startswith("word_freq")]].mean().sort_values().head(15).index,\
       df[[col for col in df.columns if col.startswith("word_freq")]].mean().sort_values().head(15).values)
plt.title('Frequent Words in Emails')
plt.ylabel('Average Frequency')
plt.xticks(rotation=45);

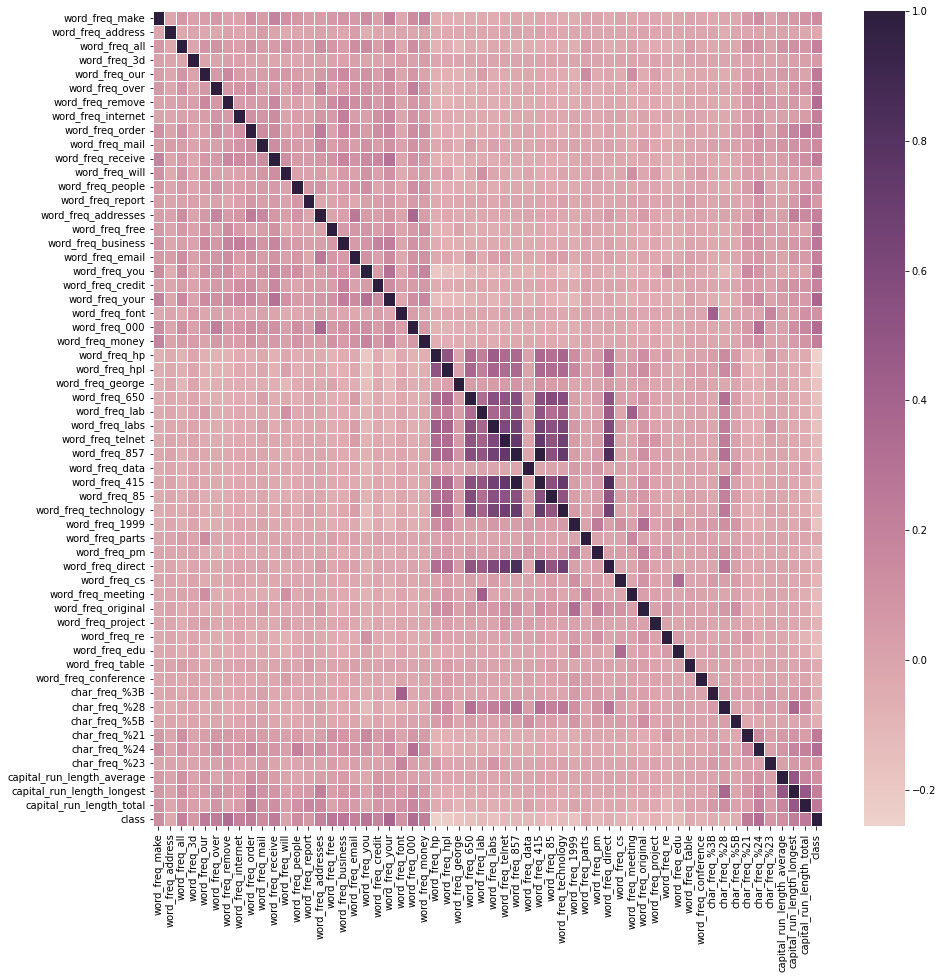

  • Heatmap
plt.figure(figsize=(15,15))
sns.heatmap(df.corr(),annot=False, linewidth=.5, cmap=sns.cubehelix_palette(as_cmap=True))

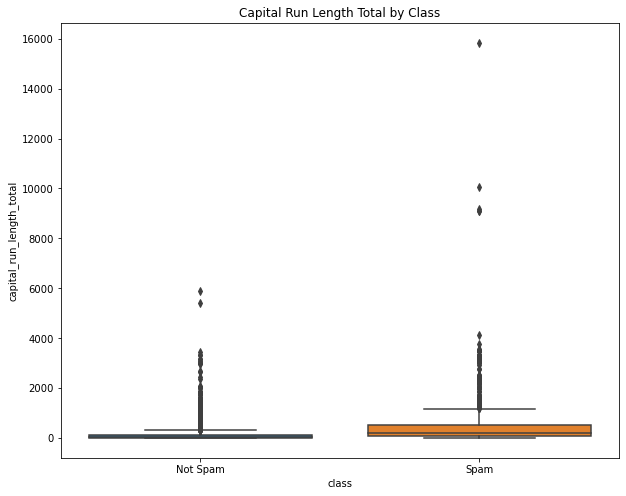

  • Capital Length
print('Not Spam :',round(df[df['class']==0]['capital_run_length_total'].mean(),4))
Not Spam : 161.4709
print('Not Spam (Max) :',round(df[df['class']==0]['capital_run_length_total'].max(),4))
Not Spam (Max) : 5902
print('Spam :',round(df[df['class']==1]['capital_run_length_total'].mean(),4))
Spam : 470.6194
print('Spam (Max) :',round(df[df['class']==1]['capital_run_length_total'].max(),4))
Spam (Max) : 15841
plt.figure(figsize=(10,8))
sns.boxplot(x='class', y='capital_run_length_total', data=df)
plt.title("Capital Run Length Total by Class")
plt.xticks([0,1],['Not Spam','Spam'],fontsize=10)
([<matplotlib.axis.XTick at 0x7fc0b7a85640>,
  <matplotlib.axis.XTick at 0x7fc0b7a85610>],
 [Text(0, 0, 'Not Spam'), Text(1, 0, 'Spam')])

  • frequent words
df[df['class']==1][[col for col in df.columns if col.startswith("word_freq")]].mean().sort_values(ascending=False).head(20)
word_freq_you         2.264539
word_freq_your        1.380370
word_freq_will        0.549972
word_freq_free        0.518362
word_freq_our         0.513955
word_freq_all         0.403795
word_freq_mail        0.350507
word_freq_email       0.319228
word_freq_business    0.287507
word_freq_remove      0.275405
word_freq_000         0.247055
word_freq_font        0.238036
word_freq_money       0.212879
word_freq_internet    0.208141
word_freq_credit      0.205521
word_freq_over        0.174876
word_freq_order       0.170061
word_freq_3d          0.164672
word_freq_address     0.164650
word_freq_make        0.152339
dtype: float64
df[df['class']==0][[col for col in df.columns if col.startswith("word_freq")]].mean().sort_values(ascending=False).head(10)
word_freq_you        1.270341
word_freq_george     1.265265
word_freq_hp         0.895473
word_freq_will       0.536324
word_freq_your       0.438702
word_freq_hpl        0.431994
word_freq_re         0.415760
word_freq_edu        0.287184
word_freq_address    0.244466
word_freq_meeting    0.216808
dtype: float64

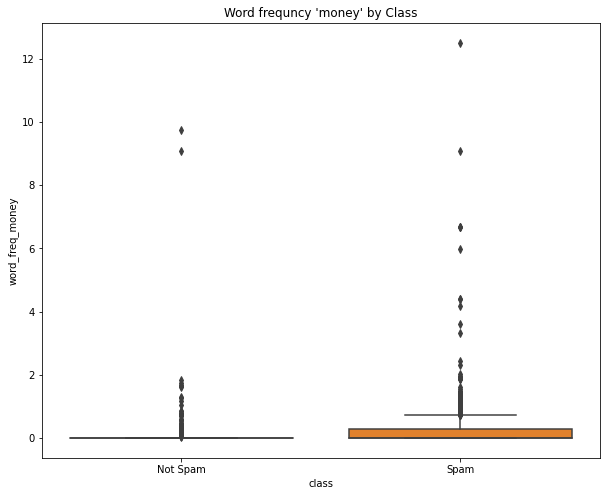

plt.figure(figsize=(10,8))
sns.boxplot(x='class', y='word_freq_money', data=df)
plt.title("Word frequncy 'money' by Class")
plt.xticks([0,1],['Not Spam','Spam'],fontsize=10)
([<matplotlib.axis.XTick at 0x7fc0b73c0b80>,
  <matplotlib.axis.XTick at 0x7fc0b73c0b50>],
 [Text(0, 0, 'Not Spam'), Text(1, 0, 'Spam')])

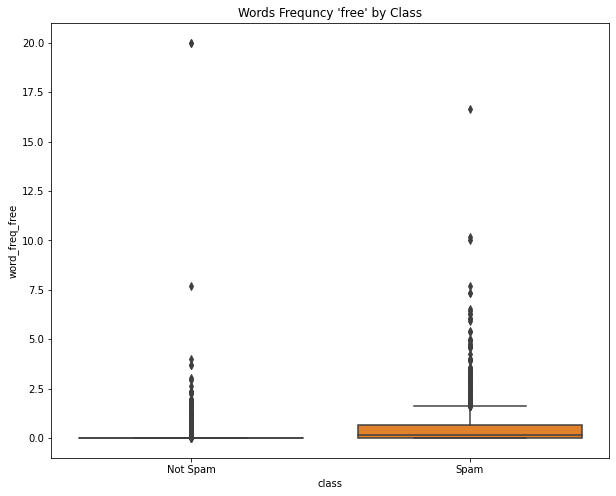

plt.figure(figsize=(10,8))
sns.boxplot(x='class', y='word_freq_free', data=df)
plt.title("Words Frequncy 'free' by Class")
plt.xticks([0,1],['Not Spam','Spam'],fontsize=10)
([<matplotlib.axis.XTick at 0x7fc0b729c850>,
  <matplotlib.axis.XTick at 0x7fc0b729c820>],
 [Text(0, 0, 'Not Spam'), Text(1, 0, 'Spam')])

PCA

X = df.drop('class', axis =1)
y = df['class']
X_scaled = StandardScaler().fit_transform(X)
pca = PCA(n_components=2)
components=pca.fit_transform(X_scaled)
components
array([[-0.73174728, -0.04293728],
       [-1.18508882,  2.06825469],
       [-1.46759045,  5.02266333],
       ...,
       [-0.26187932, -0.41736537],
       [-0.58982762, -0.66145043],
       [-0.73881084, -0.64724354]])

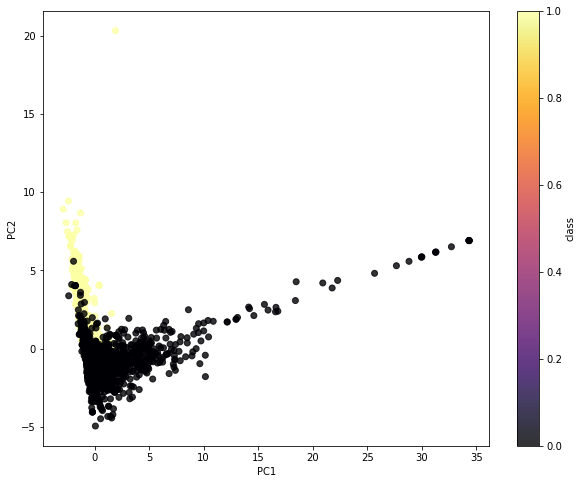

  • most likely divided classes
plt.figure(figsize=(10,8))
plt.scatter(components[:,0],components[:,1],c=y, cmap='inferno',alpha=0.8)
plt.colorbar(label='class')
plt.xlabel('PC1')
plt.ylabel('PC2')
Text(0, 0.5, 'PC2')

  • PC1 explains well feature of ‘Not Spam’ mails.
  • PC2 explains well feature of ‘Spam’ mails.

Logistic Regression

X = df.drop('class', axis =1)
y = df['class']
X_train, X_test, y_train, y_test = train_test_split(X,y, test_size=0.3, random_state=1212)
scaler = StandardScaler()
X_train_scaled = scaler.fit_transform(X_train)
X_test_scaled = scaler.fit_transform(X_test)
logit = LogisticRegression(max_iter=150)
logit.fit(X_train_scaled, y_train)
LogisticRegression(max_iter=150)
In a Jupyter environment, please rerun this cell to show the HTML representation or trust the notebook.
On GitHub, the HTML representation is unable to render, please try loading this page with nbviewer.org.
y_pred = logit.predict(X_test_scaled)
y_pred_proba = logit.predict_proba(X_test_scaled)[:,1]
cm = confusion_matrix(y_test, y_pred)
cm
array([[802,  58],
       [ 47, 474]])
print(classification_report(y_test, y_pred))
              precision    recall  f1-score   support

           0       0.94      0.93      0.94       860
           1       0.89      0.91      0.90       521

    accuracy                           0.92      1381
   macro avg       0.92      0.92      0.92      1381
weighted avg       0.92      0.92      0.92      1381

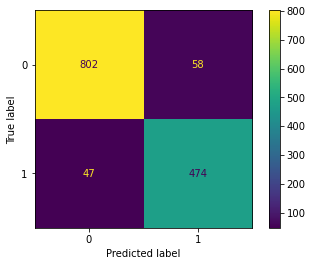

dis = ConfusionMatrixDisplay(confusion_matrix=cm,
                              display_labels=logit.classes_)
dis.plot()

  • AUC
round(roc_auc_score(y_test,y_pred_proba),4)
0.9688

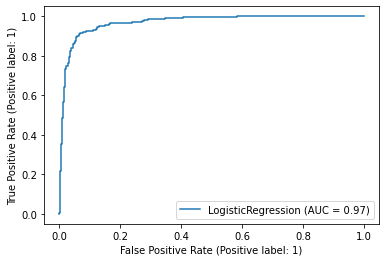

  • ROC Curve
RocCurveDisplay.from_estimator(logit, X_test_scaled, y_test)

  • high probability of features top10
pd.DataFrame({'feature':X.columns,'coef':logit.coef_[0]}).sort_values(by='coef',ascending=False).head(10)
feature coef
23 word_freq_money 1.168081
53 char_freq_%23 1.013748
22 word_freq_000 0.907612
52 char_freq_%24 0.877258
6 word_freq_remove 0.755996
15 word_freq_free 0.740973
55 capital_run_length_longest 0.517987
3 word_freq_3d 0.510681
19 word_freq_credit 0.510549
56 capital_run_length_total 0.488242
